Model Number : CFL8R
Brand Name : Cenlee
Place of Origin : Hunan, China
MOQ : 1
Max speed : 8000r/min
Max capacity : 6x2400ml
Max RCF : 14336×g
Speed accuracy : ±20r/min
Temperature range : -20℃~+40℃
Temperature accuracy : ±1℃
Power : 6.6KW
Power supply : AC 220V 50Hz 30A
Noise level : ≤65dB(A)
Dimensions : 960×860×1200mm (L×W×H)
Gross weight : 500kg
Rotor type : CFL8R
Angle rotor capacity : 6×1000ml
Swing rotor capacity : 6×2400ml
Timing range : 1 min~99h59S
1. Floor Standing refrigerated Centrifuge(-20°C to +40°C)
The Centrifuge offers outstanding performance in fast, efficient centrifuging of blood bags and large sample volumes.
2. It accommodates a maximum capacity of 6 x 2400 ml (or 12x400ml blood bag system). When in use, the cooled large-volume centrifuge rests on high-quality vibration dampers.
3. Optimal running performance guarantees best separation results. The low noise level makes agreeable working conditions.
4. The extensive range of carriers and adapters for blood collection tubes, standard tubes, bottles and various blood bag systems can be centrifuged in one rotor - changing rotors is not necessary
5. The stainless steel panel control box can be made according to customer requirements to meet the GMP requirements of the pharmaceutical industry.
6. Widely used in radioimmunoassay, biochemistry, pharmaceutical and other industries, especially the separation and purification of blood products.
· Available with internal or external cooling for GMP and lean-room environments
· Non-wind shielded rotor for best sample temperature control
· 6 placed x 1000ml/2400ml
· LED/LCD Control panel for easy operation
· One (1) year warranty
Technical parameter
| Model | CFL8R | ACC/DEC | 1~10 level |
| Maximum speed | 8000r/min | 1 min~99h59S | |
| Maximum RCF | 14336×g | Power | 6.6KW |
| Maximum capacity | 6×2400ml | AC 220V 50Hz 30A | |
| Speed Accuracy | ±20r/min | Noise | ≤65dB(A) |
| Temperature range | -20℃~+40℃ | 960×860×1200mm (L×W×H) | |
| ±1℃ | Gross weight | 500kg |
CFL8R rotor
| Rotor type | No. | Capacity | Max Speed(r/min) | Max RCF(×g) |
| Main machine | CFL8R |
| 8000 | 14336 |
| Angle rotor | NO.1 | 6×1000ml | 8000 | 14336 |
| Swing out rotor | NO.2 | 6×2400ml | 4600 | 7060 |
| Swing out rotor | NO.3 | 6×2×1000ml | 4200 | 5900 |


|
|

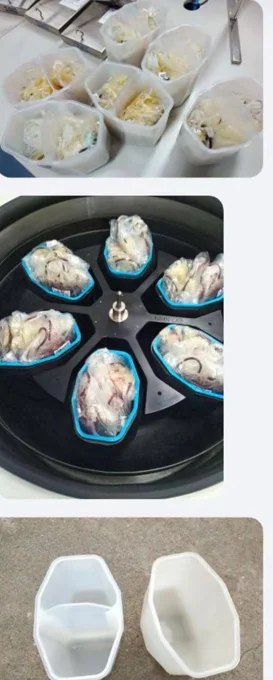

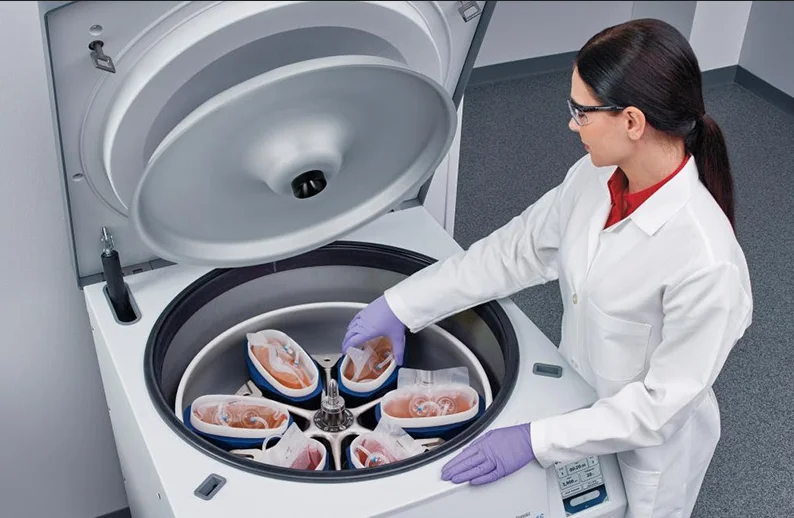

Floor Standing Refrigerated Centrifuge with -20°C to +40°C Cooling Low Noise ≤65dB and Stainless Steel Panel for Blood Bank Applications Images |
